Features

Digital LCD Controller

Compatible with most third party software, the intuitive Ruida controller is easy to use & offers all the advanced capabilities you need. Adjust laser position, power dimensions, and fine-tune your designs on the digital display.

High-Performance Glass Tube

This CO₂ glass laser tube provides 100W of power for up to 8000 hours. High-voltage discharge excites high-concentration carbon dioxide gas to generate a laser with a wavelength of 10.6um

Rapid Autofocusing

Built-in red light positioning, lets you quickly correct the focus of your laser directly from the control panel without any need to bother with troublesome tools and tedious manual adjustment.

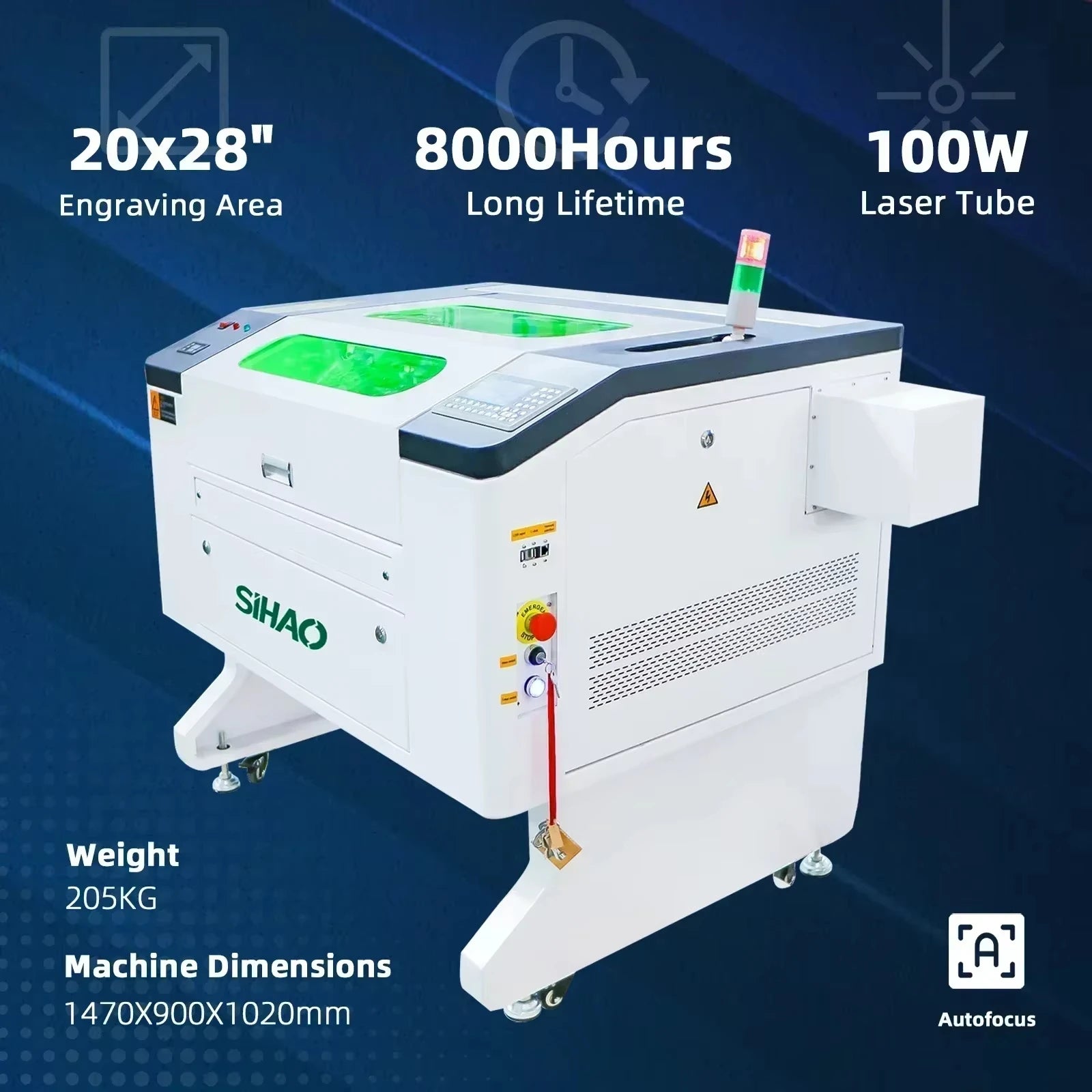

Spacious Work Bed

The 20x28 inch(500x700mm) engraving table includes both honeycomb and aluminum knife beds to handle a wide variety of nonmetallic substrates, including wood, leather, glass, fabric, stone, paper, bamboo, acrylic, felt, and much more!

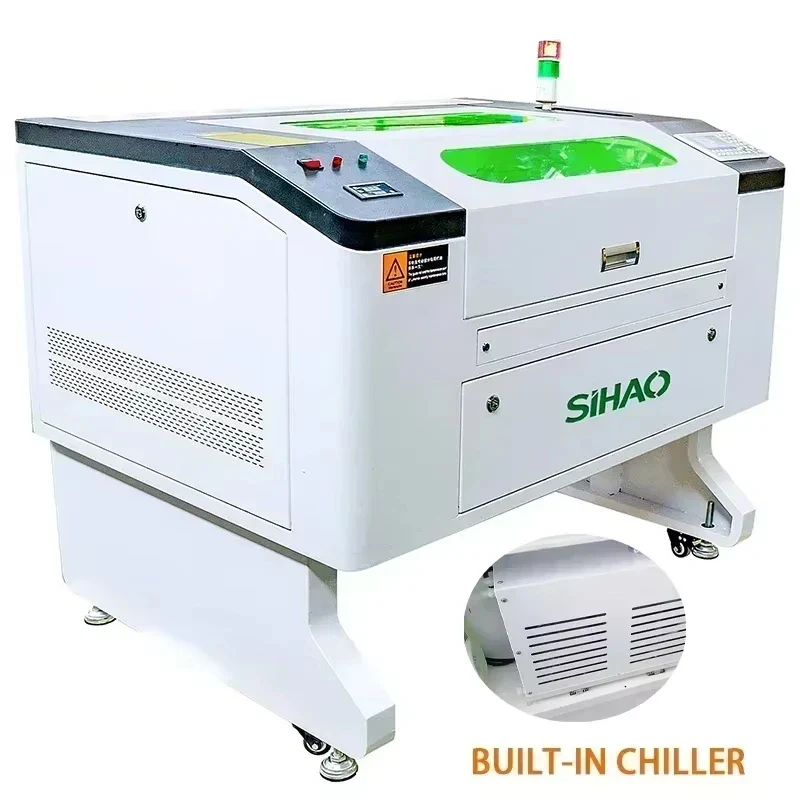

Built-in Cooling System

This patented and self-devoloped Compressor Circulating Water Cooling System to keep the laser tube nice and cool no matter your project.(Note:Water temperature is required to be lower than 35 degrees Celsius)

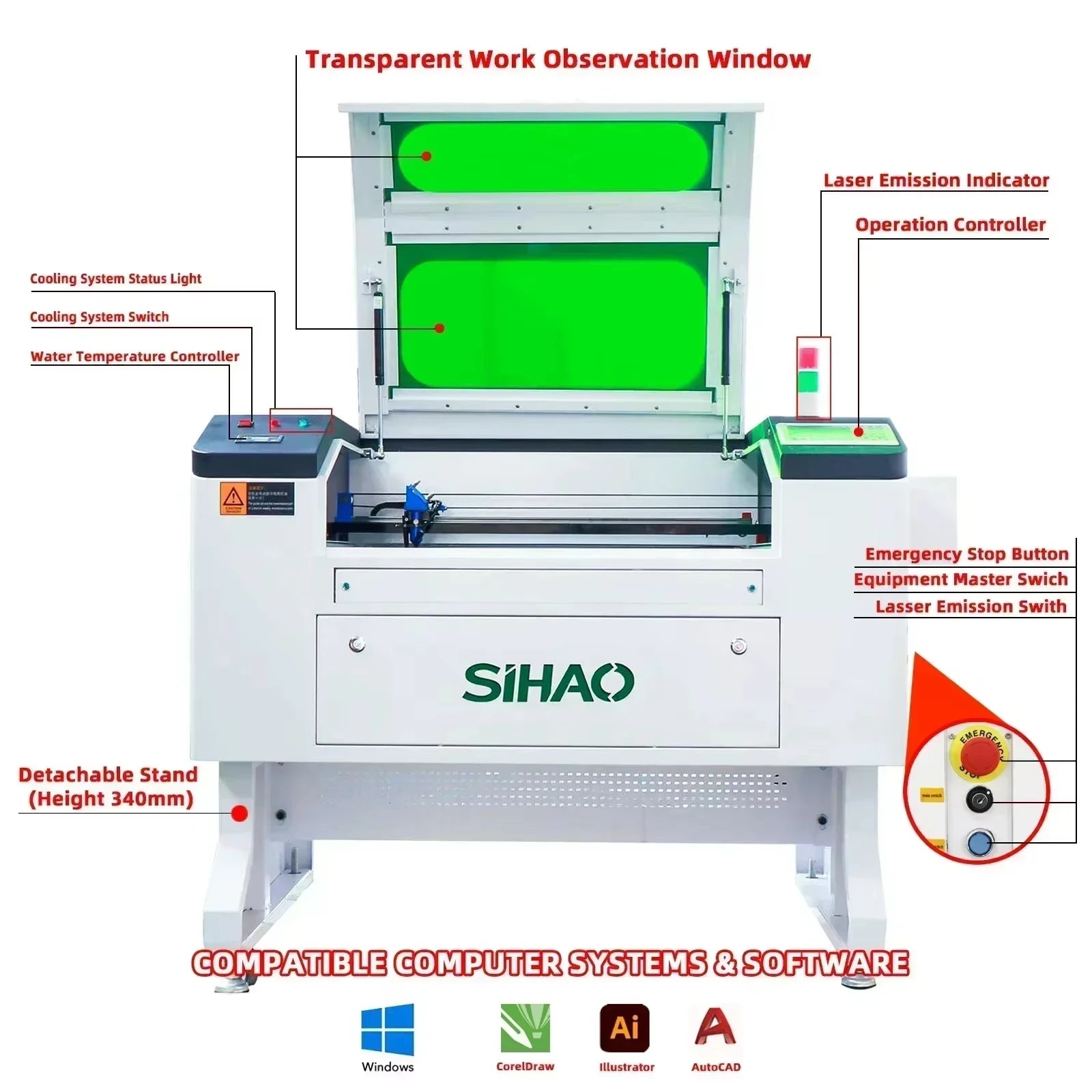

Safety Warning Light

Our Machine preinstalled the laser emission indicator light lets the use of laser is safe.

Specifications

-- Total power:﹤1500W
-- Working environment humidity:5％-95％ Non-condensing environment
-- Working temperature: 5-50℃
-- Laser type: CO2 glass laser
-- Laser power:90W-100W
-- Laser life : ≥8000h
-- How lasers work: High-voltage discharge excites high-concentration carbon dioxide gas to generate a laser with a wavelength of 10.6um
-- Drive type: Digital two-phase stepper driver
-- Motor type:57 Hybrid Stepper Motor
-- Working area: 500*700mm
-- Workbench style:Cellular and Knife Platforms
-- Workbench adjustment:Electric table (space 140mm)
-- Bracket:Detachable stand (height 340mm)
-- Laser cooling mode:Self-developed built-in compressor circulating water cooling system (water temperature is required to be lower than 35 degrees Celsius)
-- Idle speed:0-500mm/s
-- Engraving speed:0-500mm/s
-- Cutting speed:0-400mm/s
-- Engraving cutting depth: 0-10mm (for reference only, depending on different materials and power)
-- Accessibility: Built-in red light positioning, auto focus
-- Protective function: Built-in blowing flame retardant, circulating water protection, cover opening protection, working indicator
-- Name of software: RDworks v8
-- Supported software: CorelDraw,AutoCAD,Illustrator,Lightburn

-- Software operating environment:Windows
-- Graphic format supported:CorelDraw, AutoCAD, Illustrator recognizable formats such as: JPG, BMP, AI, PLT, etc.
-- Data transmission:USB2.0, U disk, network cable transmission
-- Power supply:AC220±10% / AC110±10%
-- Minimal shaped text: 2mm*2mm
-- Smallest formed letter: 1mm*1mm
-- Supported languages:Chinese Simplified, English, Chinese Traditional, Korean, Russian, Italian, Polish, French, German, Japanese, Indonesian, Turkish, Arabic, Finnish, Spanish, Portuguese, Vietnamese

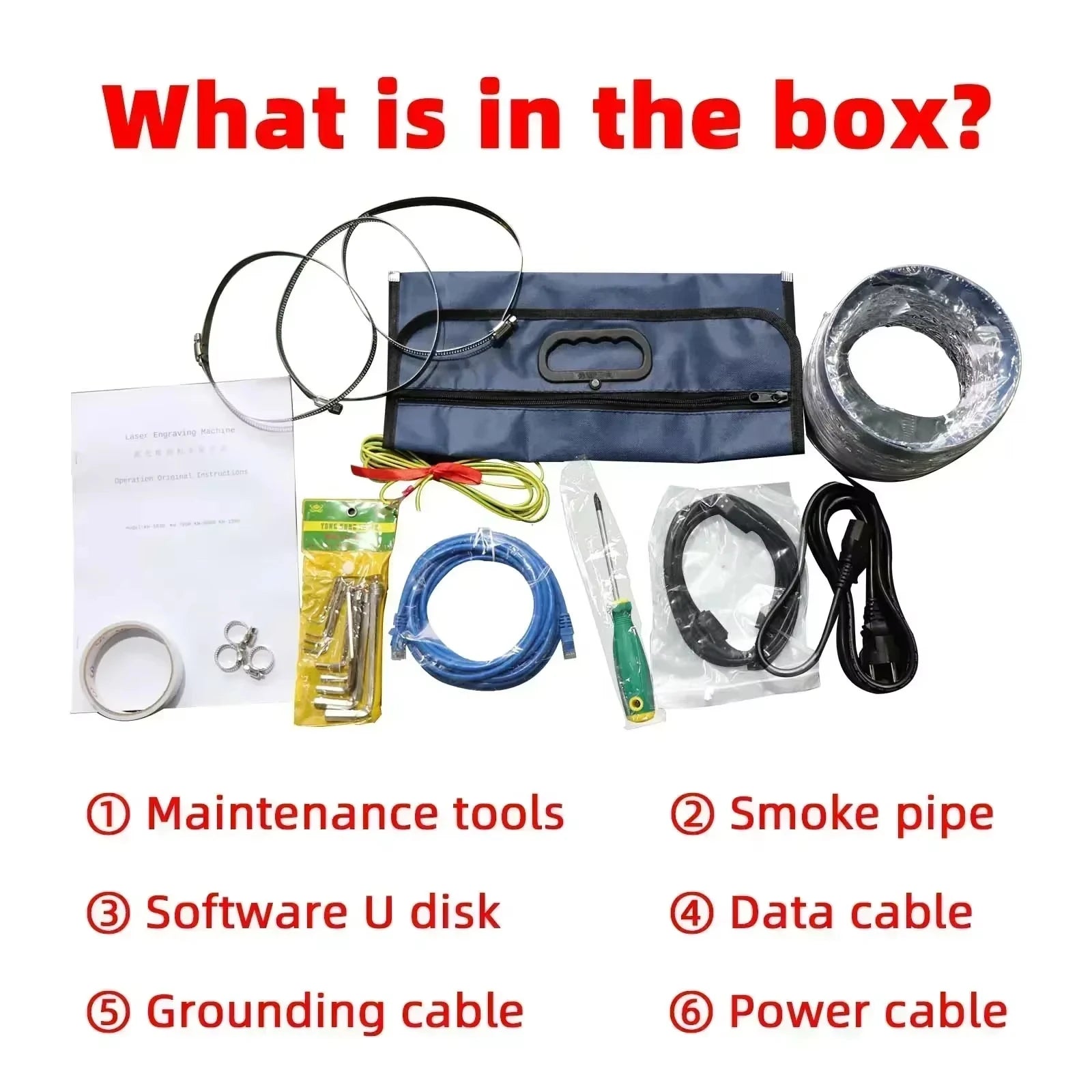

Packing List

①Maintenance tools
②Smoke pipe
③Software U disk
④Data cable
⑤Power cable
⑥Grounding cable
